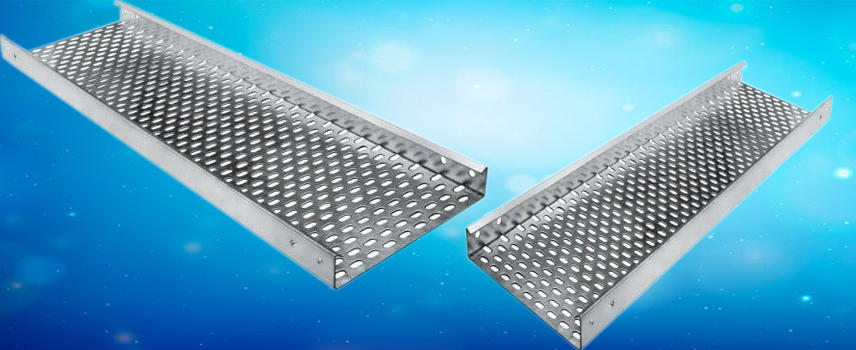

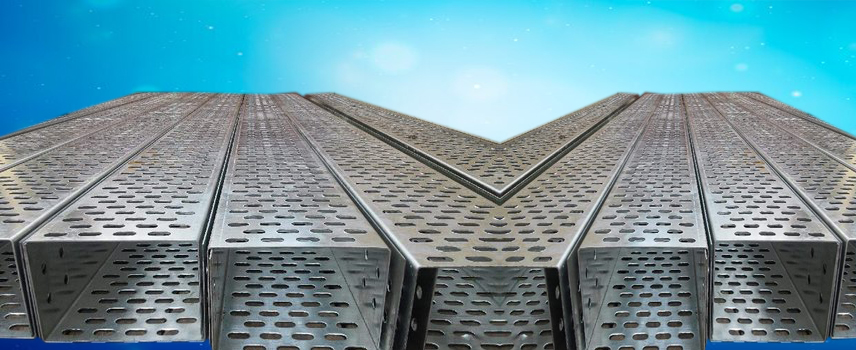

Perforated Cable Tray
We offer the most extensive range of perforated type cable trays, which are used for the installation of cables, smaller & controlled cables. These trays can accommodate large number of branch lines and have high load-bearing capacity.
Perforated cable trays can be hung using a center rod support, C-hanger or two-trapeze configuration. They can also be mounted on wall using brackets. For further security, these cable trays are also available with covers. We can also customize the products depending upon the specific requirements.
| S.no | Height | Width | Length |
|---|---|---|---|
| 1 | 25 | 50 | 2500 |
| 2 | 25 | 50 | 2500 |
| 3 | 25 | 75 | 2500 |
| 4 | 50 | 75 | 2500 |
| 5 | 25 | 100 | 2500 |
| 6 | 50 | 100 | 2500 |
| 7 | 50 | 150 | 2500 |
| 8 | 50 | 200 | 2500 |
| 9 | 50 | 250 | 2500 |
| 10 | 50 | 300 | 2500 |
| 11 | 50 | 400 | 2500 |
| 12 | 50 | 500 | 2500 |
| 13 | 75/100/150 | 600 | 2500 |
| 14 | 75/100/150 | 700 | 2500 |
| 15 | 75/100/150 | 800 | 2500 |
| 16 | 75/100/150 | 900 | 2500 |
| 17 | 75/100/150 | 100 | 2500 |
Hot - Dip gulvanise with powder coating and GI Perforated. Cable Tray Thickness 16 SWG. 14 SWG. 12 SWG cable tray fabricated GI or HR Sheet in the standerd length of 2.5 meters with our standard Perforation Gi Coupler plate and Hardware.
